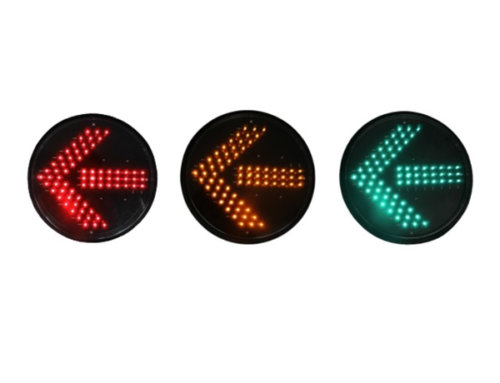

Module for Automobile Signal Light
NOB:NA300-TF-MASL
The housing is made of PC material, which can be open and be maintained without other special tools. It is characterized with high impact strength, dimension stability, electricity insulation, corrosion resistance and abrasive resistance.
Module for Automobile Signal Light
Features
-High efficiency & long life LED
-Reduced operational costs
-Moisture and dust resistant
-Integrated LED luminare
-Bright and highly visible illumination
-Uniform optical output
-Maintains both a high level of phantom contrast and a good anti-washout performance
-Specifically designed to meeting world standards
Product Parameter
|
Diameter
|
Color
|
LED Quantity
|
Luminance
|
Wavelength
|
Power
|
Voltage
|
Environment
|
Material of housing
|
| 200mm | 60pcs | >5000cd/㎡ | 625±5nm | ≤7W | 12V/24VDC
85-265VAC 50/60Hz |
-40℃ to +80℃ | Plastic | |
| 60pcs | >5000cd/㎡ | 590±5nm | ≤7W | |||||
| 60pcs | >5000cd/㎡ | 505±5nm | ≤7W | |||||
| 300mm | 165pcs | >5000cd/㎡ | 625±5nm | ≤8W | Aluminum
Plastic |
|||
| 165pcs | >5000cd/㎡ | 590±5nm | ≤8W | |||||
| 165pcs | >5000cd/㎡ | 505±5nm | ≤14W | |||||
| 400mm | 210pcs | >5000cd/㎡ | 625±5nm | ≤17W | ||||
| 210pcs | >5000cd/㎡ | 590±5nm | ≤17W | |||||
| 210pcs | >5000cd/㎡ | 505±5nm | ≤17W | |||||
| 500mm | Customized specification is abailable | |||||||
| 600mm | ||||||||
