Double Digit Countdown Timer Signal Light
NOB:NA-TF-SDCT02
The housing is made of PC or aluminum alloy material, which can be open and be maintained without other special tools. It is characterized with high impact strength, dimension stability, electricity insulation, corrosion resistance and abrasive resistance.
Double Digit Countdown Timer Signal Light
Features
1.PC housing,aluminum housing and cold-rolled steel housing for option.
2.Multi-layer seals,waterproof,dust proof,anti-lightning and surge protection,anti-vibration and long lifespan.
3.The core circuit adopts SCM,the countdown timer can run stably by adopting“Independent Clock Watchdog”software and anti-disturbing measures of the hardware.
4.Modular design,easy for maintenance and replacement.
5.Comply with GAT508-2014 and relevant international standards.
6.Working modes:Learning type,communication type and trigger type,which can be compatible based on the requirements from the customers.
Product Parameter
|
Diameter
|
Assemblage Parts
|
Color
|
LED Quantity
|
Luminance
|
Wavelength
|
Power
|
Voltage
|
Environment
|
Material of housing
|
| 400*4000mm | 2-Color Timer | 128pcs | >5000cd/㎡ | 625±5nm | ≤20W | 85-265VAC 50/60Hz | -40℃ to +80℃ |
Aluminum Plastic |
|
| 128pcs | >5000cd/㎡ | 505±5nm | ≤20W | ||||||
| 3-Color Timer | 128pcs | >5000cd/㎡ | 625±5nm | ≤20W | |||||
| 64pcs | >5000cd/㎡ | 590±5nm | ≤20W | ||||||
| 128pcs | >5000cd/㎡ | 505±5nm | ≤20W |
Product Parameter
|
Diameter
|
Assemblage Parts
|
Color
|
LED Quantity
|
Luminance
|
Wavelength
|
Power
|
Voltage
|
Environment
|
Material of housing
|
| 800*600mm | 2-Color Timer | 546pcs | >5000cd/㎡ | 625±5nm | ≤25W | 185-265VAC 50/60Hz | -40℃ to +80℃ |
Aluminum Plastic |
|
| 336pcs | >5000cd/㎡ | 505±5nm | ≤25W | ||||||
| 3-Color Timer | 546pcs | >5000cd/㎡ | 625±5nm | ≤25W | |||||
| 294pcs | >5000cd/㎡ | 590±5nm | ≤25W | ||||||
| 336pcs | 590±5nm | 505±5nm | ≤25W |

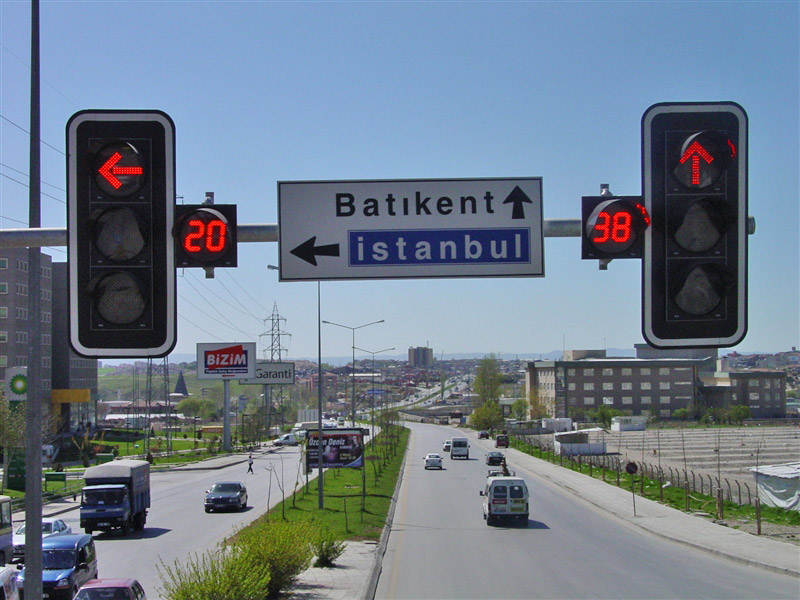

Installation illustration
Factory pictures
