Bicycle Signal Light
NOB:NA300-TF-BSL
The housing is made of PC material, which can be open and be maintained without other special tools. It is characterized with high impact strength, dimension stability, electricity insulation, corrosion resistance and abrasive resistance.
Bicycle Signal Light
Features
- High bright and highly visible illumination LED
- Extremely long service life
- Protection level:IP65
- Even brightness & standard chromatogram
- Operating at the temperature of -40℃ to +80℃
- Compatibility with most traffic controllers
Product Parameter
|
Diameter
|
Color
|
LED Quantity
|
Luminance
|
Wavelength
|
Power
|
Voltage
|
Environment
|
Material of housing
|
| 200mm | 45pcs | >5000cd/㎡ | 625±5nm | ≤6W | 12V/24VDC
85-265VAC 50/60Hz |
-40℃ to +80℃ | Plastic | |
| 45pcs | >5000cd/㎡ | 590±5nm | ≤6W | |||||
| 45pcs | >5000cd/㎡ | 505±5nm | ≤6W | |||||
| 300mm | 68pcs | >5000cd/㎡ | 625±5nm | ≤8W | ||||
| 68pcs | >5000cd/㎡ | 590±5nm | ≤8W | |||||
| 68pcs | >5000cd/㎡ | 505±5nm | ≤8W | |||||
| 400mm | 95pcs | >5000cd/㎡ | 625±5nm | ≤8W | ||||
| 95pcs | >5000cd/㎡ | 590±5nm | ≤10W | |||||
| 95pcs | >5000cd/㎡ | 505±5nm | ≤8W | |||||
| 500mm | Customized specification is abailable | |||||||
| 600mm | ||||||||

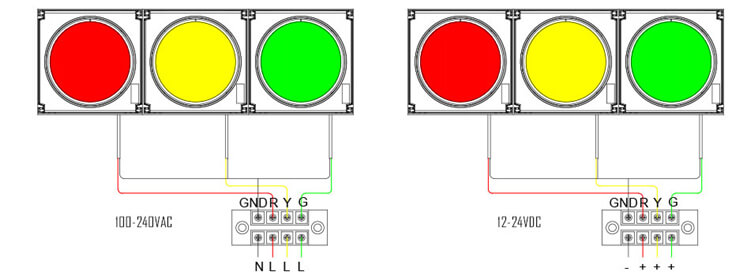

Installation illustration
Factory pictures
